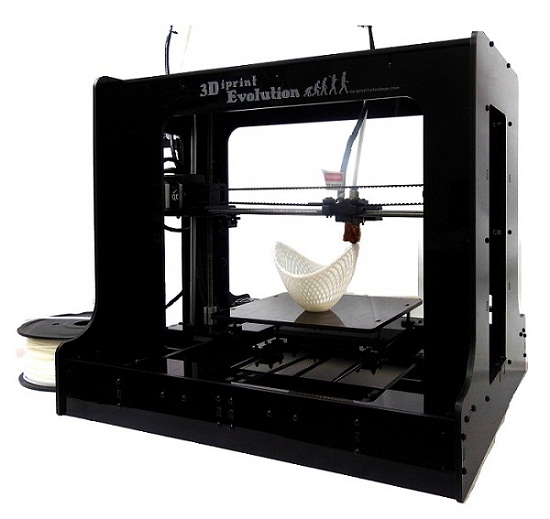

Evolution 3d Printer DO it yourself Kit
Evolution, is a trendy, 3d printer which would be handy to use and due to its acrylic finish it has a transparent look, PLA compatible, innovative model maker for engineers, professionals and could be bought at an affordable price.
The print area of eVOLUTION includes large print area of (200x200x200mm)
It is an unassembled kit which is designed especially for enthusiasts, professionals, engineers and students who have an aspiration to learn the reprap 3d printer.
The kit could be assembled easily with the manual prepared by our technical team which is included along with the kit.
In case if a person finds difficulty in assembling they could very well contact the support team which would be able to help you with the assembling. It comes with all the parts and electronics needed to build complete fully assembled 3d printer kit such as pcb gen6 board, extruders, nozzle, xcarriage,teflon tubes, metal rods, bar clamps, print plates, screws, nuts, stepper motors and wires.(refer below gallery).
Soldering is not required, instead the whole kit could be fixed with the help of nut and bolt.
Why should you buy Evolution ?
- This is an ideal machine for person with innovative ideas which could be transformed into a reality.
- Final Printed object is of great accuracy because of the nozzle which ranges between 0.2mm to 0.7mm.
- Compact design makes it ideal for any office environment.
- Easily alterable print plates, extruders and nozzles.
- Could be easily assembled with the help of a user manual.
Parts used in Evolution include:
Picture Gallery
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Video Demo

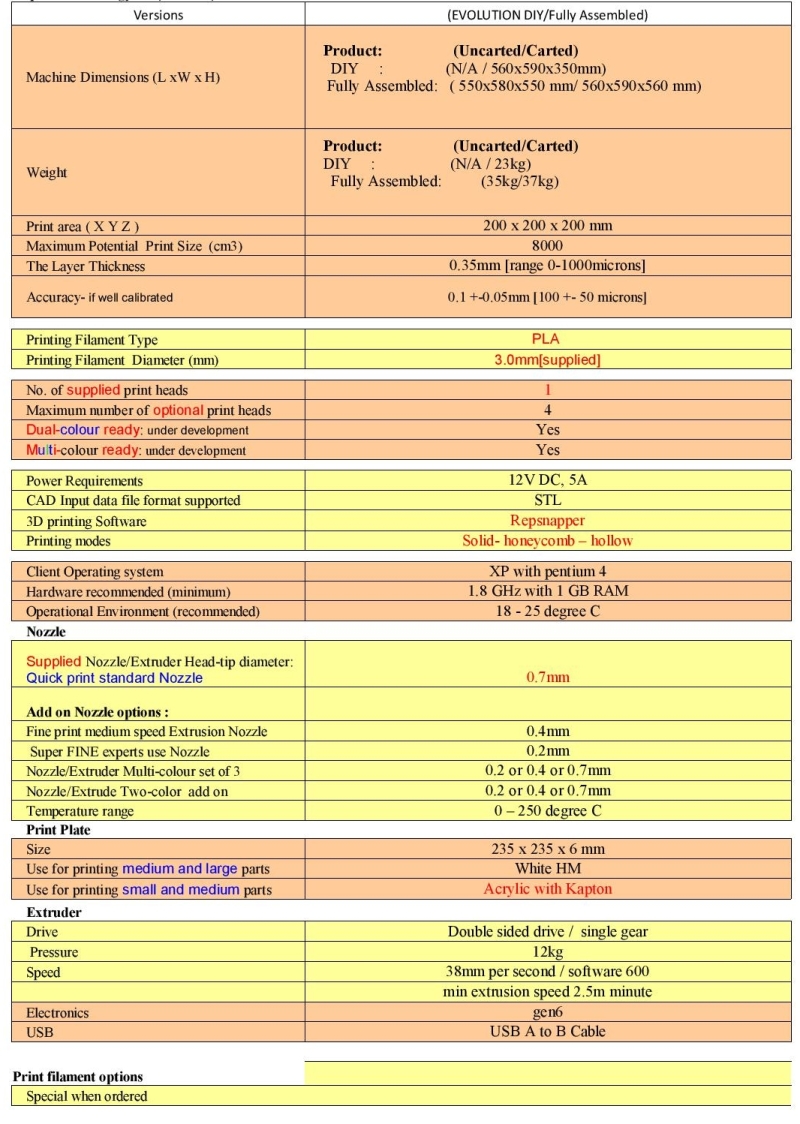

Technical Specification
Online Buy
Our Evolution-DIY kit(unassembled) is available for the best offer price ! Just $858 AUD only !!!!
Working of eVOLUTION:
The working of the eVOLUTION mainly depends on the Stepper motor which is subsequently divided in the ratio of 1:1:2 among X, Y and Z axis subsequently. X axis consists of X end Stepper motor at one end and X end idler at the other end and X carriage in the middle to which the Nozzle is fixed.
At the Y end, there is another Stepper motor with another timing belt, which helps in the movement of the acrylic Print plate
At the Z end there are two Stepper motors which would help in the upward movement of the Nozzle assembly according to the advancement in the printing process.
The most mandatory element in the printing process is the PLA which is fed into the Teflon tube and one end of the PLA is fixed to the extruder and the other end of the PLA is fixed to the X carriage assembly.
Printing Process:
The software which we use will only support .stl file.
After uploading the .stl file the slicing of the uploaded object happens according to different scales which are almost similar to the scanning process.
After slicing of the object, it gets converted into G-code after which the printing of the object begins.
At first, the PLA is heated and the melted filament flows out through the nozzle which has both the thermistor and resistor.
After testing the flow of the PLA the printing could be started.
The acrylic plate which is fixed to the Y axis moves in accordance with the nozzle which is in the X axis and there is a limit switch which is inclusive of the optosensor which would help in limiting the movement of the acrylic plate to a certain limit according to the uploaded object to be printed
The movement of both the acrylic plate and nozzle are controlled with the help of the stepper motor of 3.5 kg and a timing belt of 5.08 pitch with corresponding pulleys is used here.
Power supply which could be used for this is 12V 5Amps with which the printer could operate.
Advantages of eVOLUTION:
eVOLUTION is designed for low maintanence system, which requires only minimal maintanence.
Printed objects of smaller size could be printed easily and with greater accuracy.
Cheapest printer with all major advantages.
Warranty and Service Assistance:
We warrant that you will receive a tested and working unit or complete kit and that it left the factory only after extensive testing.
We give anytime technical assistance once the printer has been bought from us.
Shipping time that we take to deliver the printer is the fastest.
Many of our customers have appreciated us for our customer service.
Warranty Exclusions*:
The printing hot end is actually hot. Using this devise is like using a solder hot iron- safety precautions are needed for its safe operation. This unit is not a toy. It is a tool – and like any other tool adult safety sense and or child/student supervision is needed to operate it safely.
*we reserve the right to upgrade/change these specifications at any time.
Due to difficulties caused by customs in some countries, the power supply unit is not included with the kit. You need to get a local 5Amp 12 volt DC power supply (about $20).
