Prusa DIY 3D Printer Kit

Prusa is a reprap open source explorer 3D printing kit designed for learning and tinkering. so it looks like something you could cobble together yourself. You just need unlimited time and unlimited engineering resources and unlimited patience to do it. so its a given this will never happen and that is where our Prusa versions comes into play.

We are providing two DIY kits versions of Prusa, They are Prusa DIY kit and Prusa Quick build DIY kit. Our Prusa models offer you the foundation that allows you to acquire knowledge of robotics, 3D CNC things like: – 3Dprinting, CAD, electronics, programming, CNC mechanics, PIC CNC interfaces etc . but you need to climb a steep learning curve first.

Prusa DIY kit is an unassembled 3d printer kit specially made for the explorers like hobbyists, engineers, students to learn how to build reprap 3d printer.

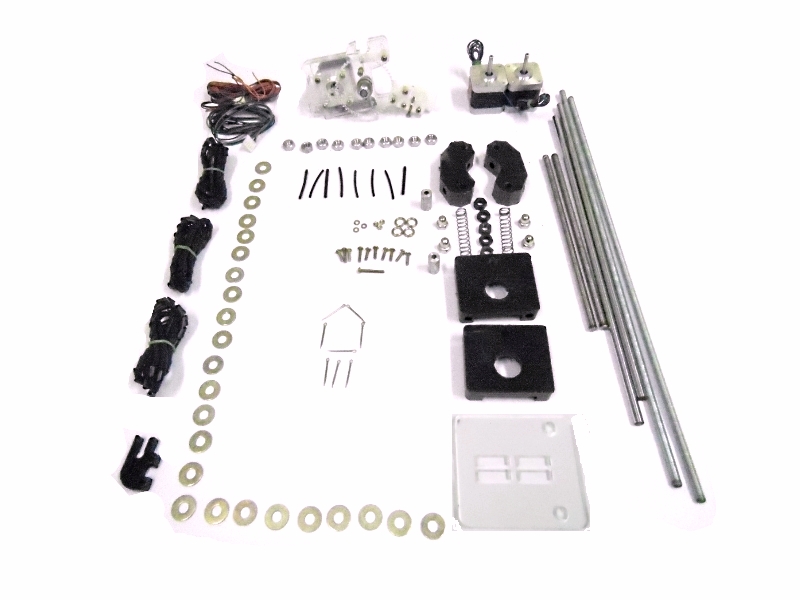

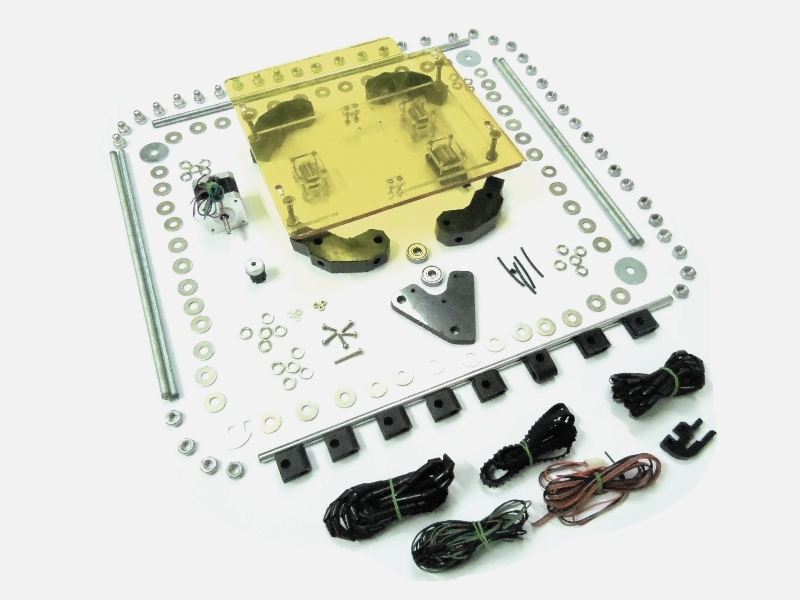

It comes with all the parts and electronics needed to build complete fully assembled 3d printer kit such as pcb gen6 board, extruders, nozzle, xcarriage,teflon tubes, metal rods, bar clamps, print plates, screws, nuts, stepper motors and wires.(refer below gallery).No soldering needed in improved reprap prusa DIY kit as most of the complex parts such as pcb, nozzle, extruders are preassembled.

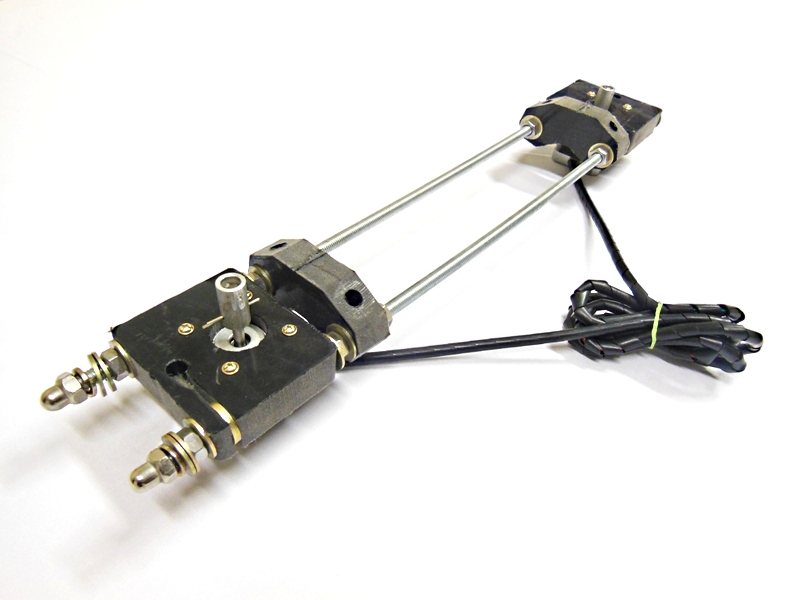

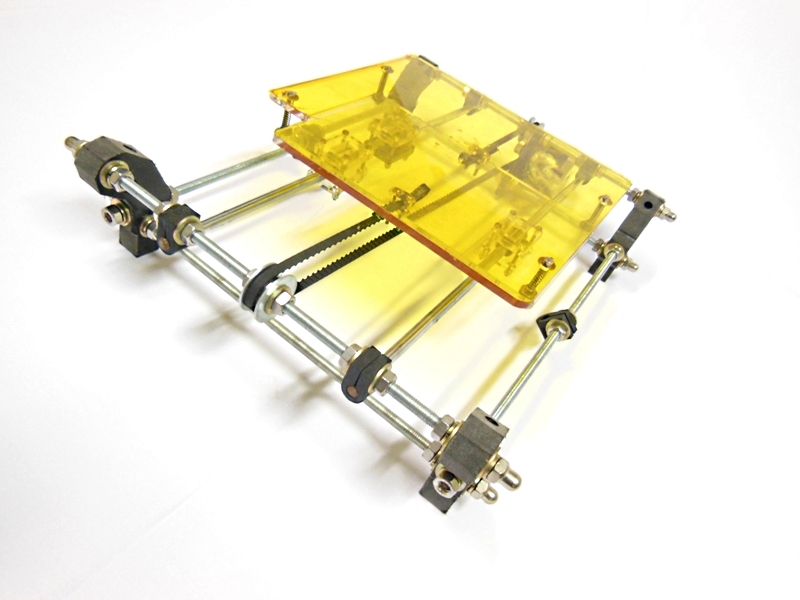

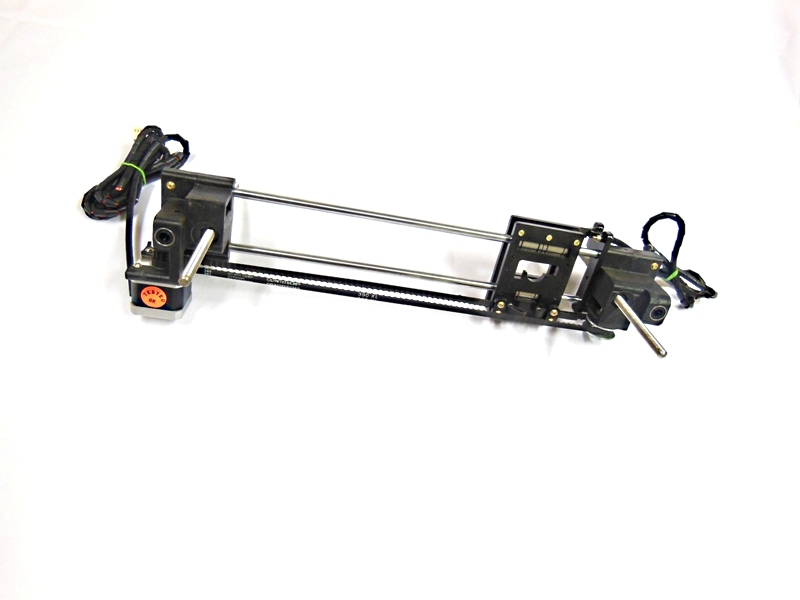

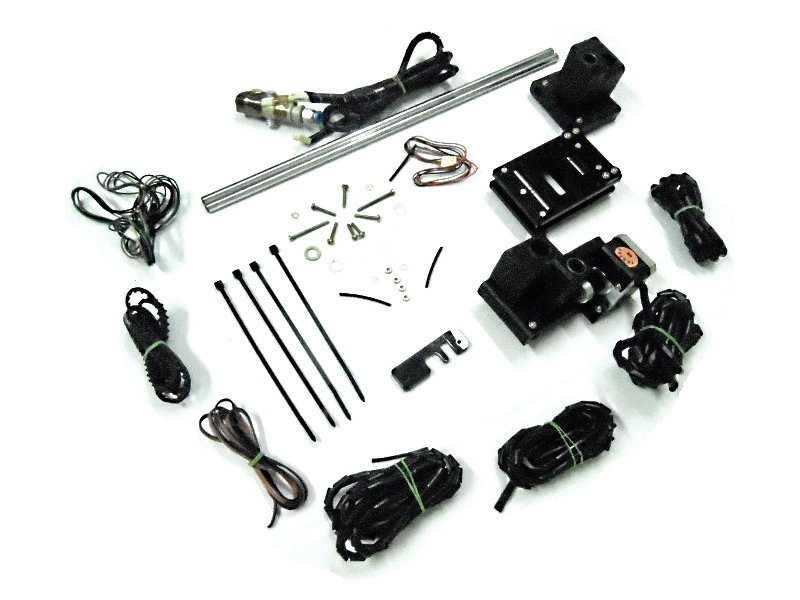

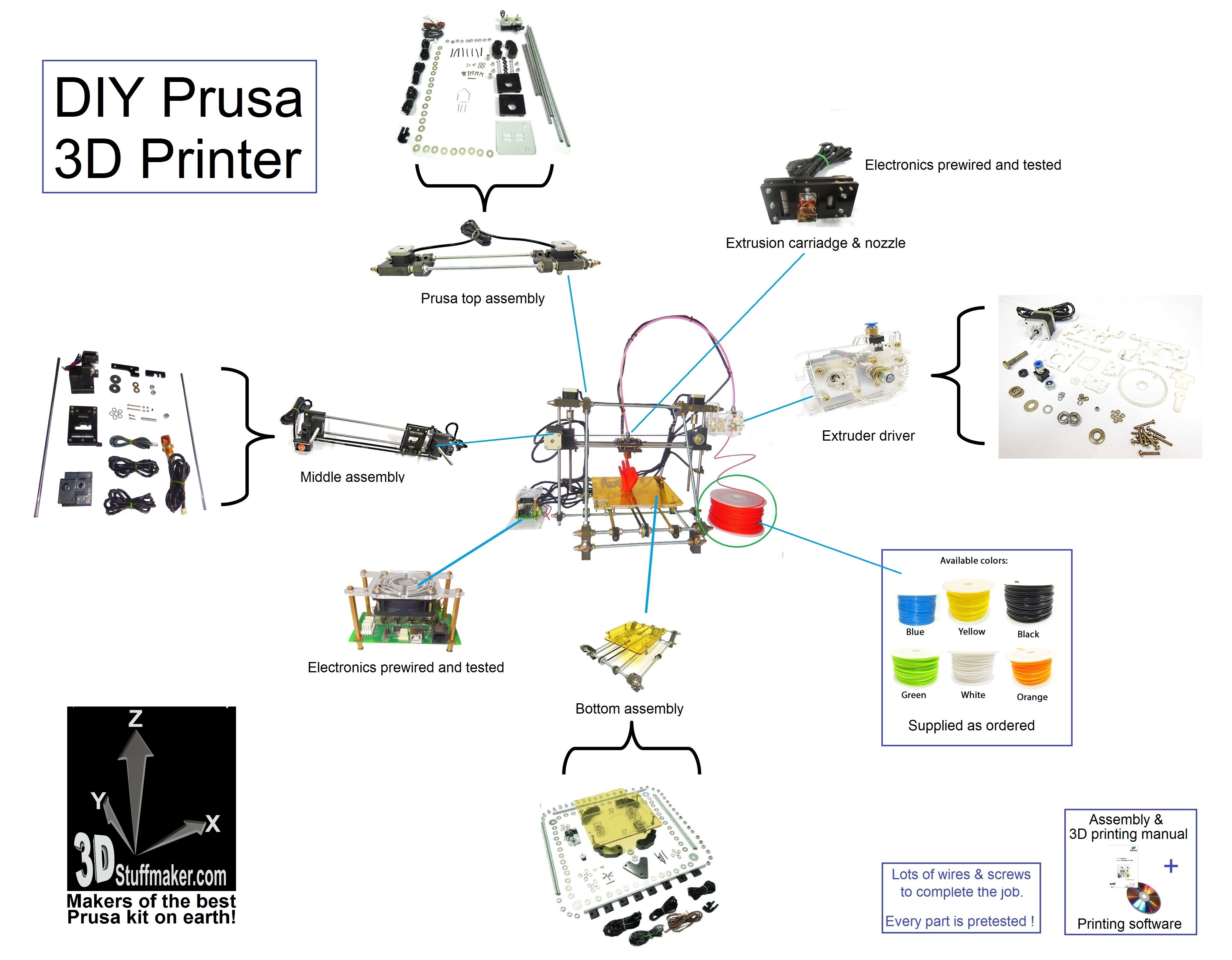

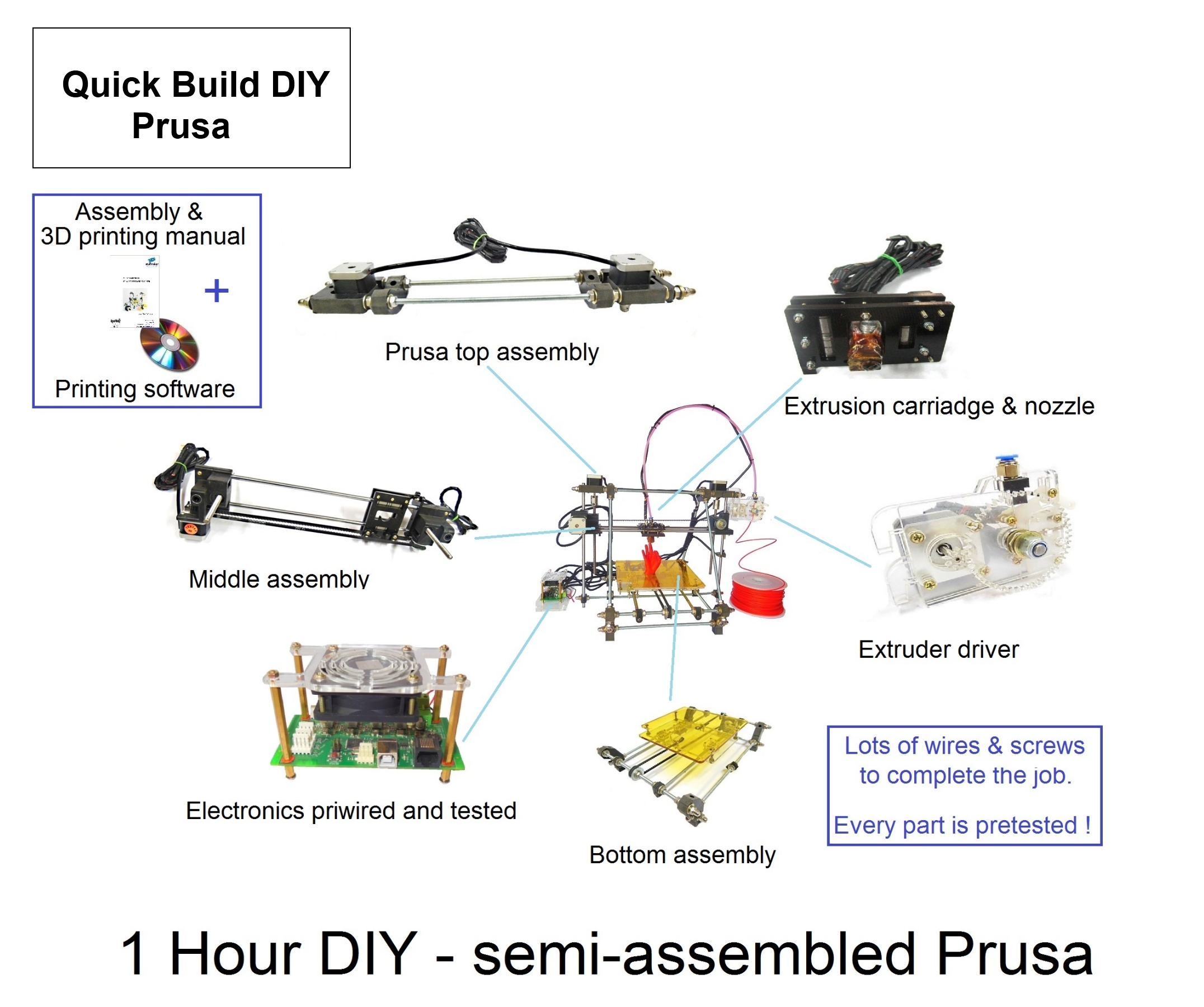

Prusa Quick Build DIY kit is our special quick DIY prusa kit also called as semi assembled prusa quick build kit in which you can make a 3d printer very quickly probably within an hour. Our basic DIY kit components are assembled semi/partly in to three sections i.e top,center and base assembly (refer below gallery), thus it makes the easy quick build DIY kit.This Kit comprises of top assembly, middle assembly, base assembly, extruder, nozzle and pcb electronics. All sub parts are pre assembled and tested already.

We have engineered 7, 3D systems and it has been fun but also very challenging. Every new reprap idea is fun to explore- but takes time to work out. so Prusa is for learning and mucking around with exciting stuff and not designed to be an out-of-the-box retail 3D printer at all. Prusa is intended for advanced hobby users, inventors, designers and multi discipline engineers of all kind, who want to learn about near professional 3D printing and CNC robotics.

Why should you buy prusa 3d printer kit?

If you are professional, engineer, hobbyist, inventor, teacher, who is looking for professional 3d printer which prints large 3d printed parts, toys, models,.etc
New extruder- easy to clean, easy to remove.

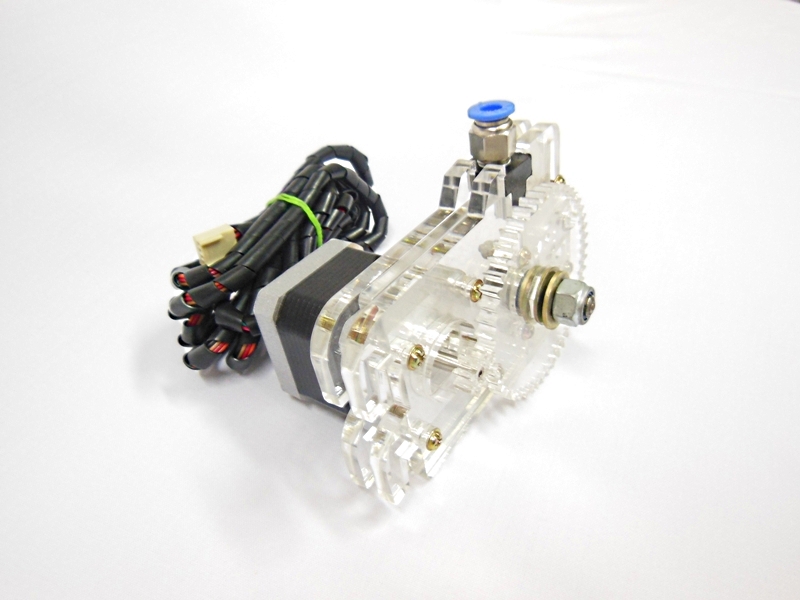

New extruder driver mechanism- no printing dust – no clogged up nozzles, laser cut Perspex- super tight filament grip. Most importantly better -smoother prints.
New extruder filament pressure adjustment for smoother print runs.
New easy to change- quick release- easy access, print filament feeding.

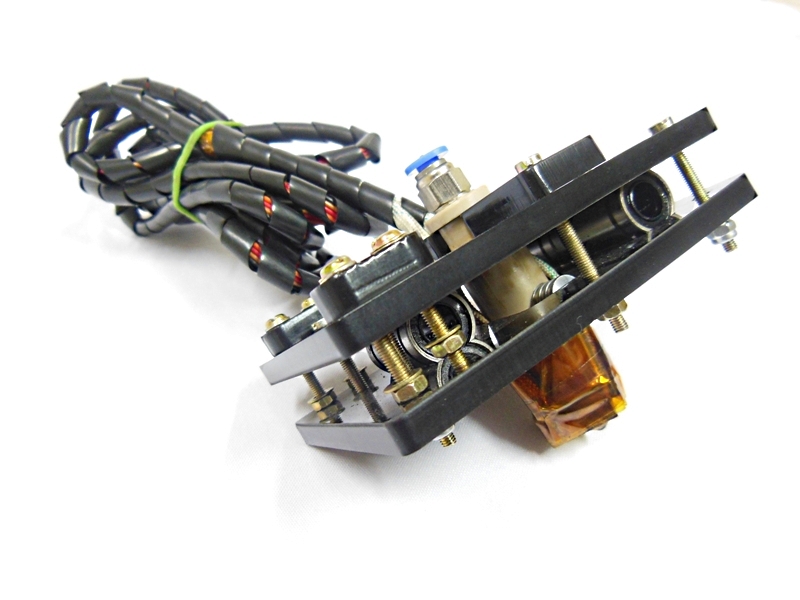

New print carriage design- with quick release PLA filament feeding tube.
New recessed, quick release keyed print table. Reduce damage due to print head accidents.
New print carriage- spring-loaded easy slide bearing assembly. Improved accuracy-reduced vibrations.
New more steady, milled frame supports- now made from super tough engineering plastic!
New print speed 0 to almost 8000 mm per minute (subject to print head and user print skills).
New easy print manual and easy print set-up starter files.
All our printers are future proof and upgradable.
New DIY- quick build kit now also upgraded to Ezy print!
New packaging and quicker delivery times.
Buy this 3d printer kit if you want to print with PLA plastic.
We have produced special PLA plastic mixes for smooth printing.
The build area is about mm 200x 200mm with a maximum height of 100 + mm (to be confirmed-as we are developing a shorter print head…).
Printing speed can be adjusted- so we can extract the best performance from inexpensive, but suitable components.
Accuracy of print is good […but actual accuracy fully depends upon the limitations of your own skill level. When we build them we easily get 0.1 mm accuracy].
Prusa can be calibrated to around 0.2mm +-0.2mm accuracy!…but it depends on your skills…
Extruder size is 0.4mm

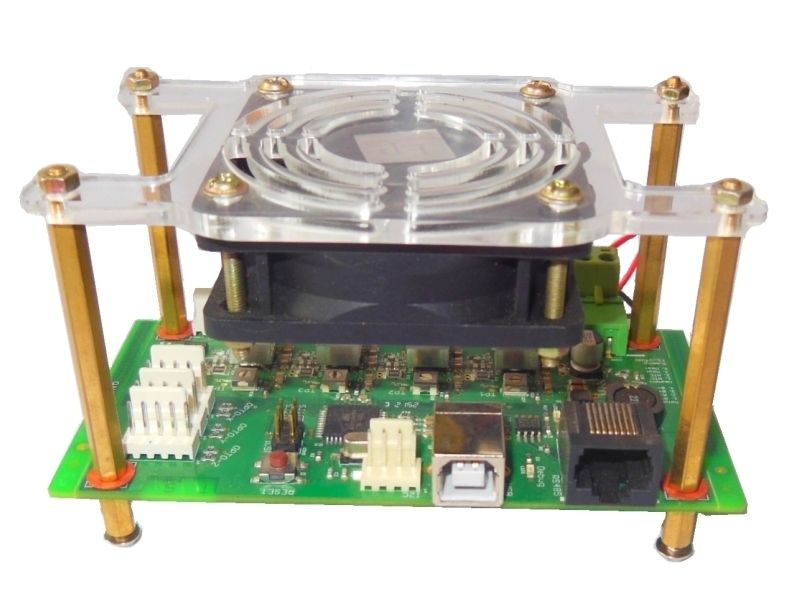

Gen6 electronics.
A major advantage of this model lies in its flexibility and ability to experiment with the set-up. It is future proof because components are easily unscrewed and new ideas/developments screwed on.
The educational value derived from buying and building the Prusa Explorer in kit form is immeasurable!
Building 3d-printed, real objects, may take a few days weeks or months- pending on your skills.
This model is the cheapest in our range. However, we have developed the reprap design to produce a 3d-print you will be proud to use and show your friends and clients.
Eco-friendly, non-hazardous print material. (PLA)
Easily exchangeable print plates ,extruders and nozzles.
Requires minimal training and expertise.

Picture Gallery

Prusa DIY Kit

Prusa Quick Build Kit

Video Demo

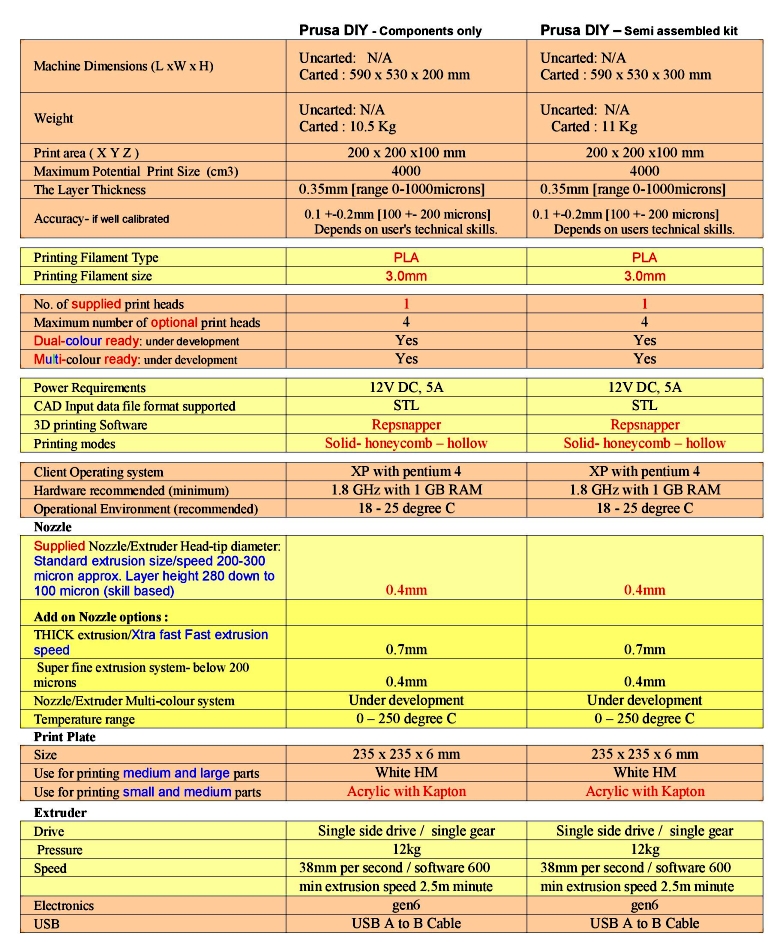

Technical Specification

Online Buy

Our Prusa DIY Kit is available for the best offer price ! Just $545 AUD only !!!!

Our Prusa Quick Build DIY Kit is available for the best offer price ! Just $695 AUD only !!!!

Working of prusa:

The Movements on prusa is controlled by 3.5 Kg.cm Steppers and Timing Belt of 5.08 Pitch with corresponding pulleys is used here, correct calibration is made for Accurate Movements of X, Y and Z axes Steppers.

The Machine Requires 12 DC 5 Amps power supply to power on the Printer, needs USB A-B cable to connect and Interact with PC, Gen6 Electronics is used here with our standard and easy print software, thus make 3d printed Parts with Accuracy and highly Reliable. It can produce Shell printing, Linear, Line printing results in Top Quality 3D Printing. Print speed may be variable according to the Prints you required.

Advantages of Prusa:

Prusa is designed for low maintenance system, which requires only minimal maintenance.The usual tool precautions apply to our 3d printers. Treat it with respect and it will perform at it’s peak. For lubrication, just wipe bearing shafts with a soft, light, soft cloth every month, to keep them shiny. Put a drop of light sewing machine-type oil on yzy threaded rods and slide bearings every month. Hot end tip life depends on proper heat regulation. For best life, simply run the hot end at the lowest possible temperature. Heating elements and extrusion tips can be replaced and repaired or just new ones screwed on. Buy our inexpensive propitiatory specially mixed PLA for best print head life. The printer box is very tough and should keep it’s calibration well. Re-calibration is however quite easy.

Warranty and Service Assistance:

We warrant that you will receive a tested and working unit or complete kit and that it left the factory only after extensive testing. If you do have an issue- just contact our Skype video support team for assistance. We are happy to ship spare parts free if parts fail due to faulty manufacture as well as we offer technical assistance and a broad range of spare parts, to keep you printing. We do not accept any claims which go beyond what is offered above. Wear and tear item and abuse are not covered.

Warranty Exclusions*:

The printing hot end is actually hot. Using this devise is like using a solder hot iron- safety precautions are needed for its safe operation. This unit is not a toy. It is a tool – and like any other tool adult safety sense and or child/student supervision is needed to operate it safely.

*we reserve the right to upgrade/change these specifications at any time.

Due to difficulties caused by customs in some countries, the power supply unit is not included with the kit. You need to get a local 5Amp 12 volt DC power supply (about $20).
